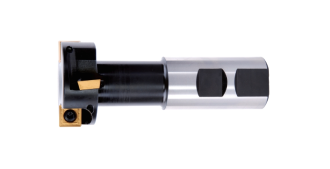

| T型槽銑刀 | T-slot cutter |
|
|
| Type |

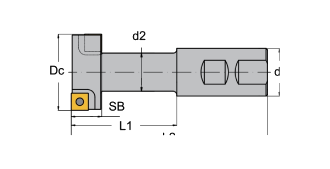

Dc mm |
d1 mm |
d2 mm |
L1 mm |
L2 mm |
SBmm | Z | Insert Type | Screw | Key |
| T09.SP06.W12.021.Z01 | 21 | 12 | 11 | 27 | 73 | 9 | 1 | SP..060304 | FCS923 | TORX08 |
| T11.SP06.W16.025.Z02 | 25 | 16 | 12 | 31 | 80 | 11 | 2 | |||
| T14.SP09.W20.032.702 | 32 | 20 | 17 | 39 | 90 | 14 | 2 | SP..09T308 | FCS922 | TORX15 |
| T17.SP09.W25.040.Z02 | 40 | 25 | 21 | 49 | 106 | 17 | 2 | |||
| T21.SP12.W32.050.Z02 | 50 | 32 | 27 | 61 | 122 | 21 | 2 | SP..120408 | FCS1028 | TORX20 |
|
Insert Type |
L1 mm |
a° |
S mm |
R mm |
| SP..0603.. | 6.35 | 11 | 3.18 | 0.4 | |
| SP..09T3.. | 9.52 | 11 | 3.97 | 0.8 | |
| SP..1204.. | 12.7 | 11 | 4.76 | 0.8 |
| Material Type | P | M | K | N |
| Applicable lnsert Type |
Alloy steel |
Stainless steel |
Castiron |
Non-ferrous metals |
| SPMT060304 | FPK20 | FCM20 | FPK20 | - |
| SPMT09T308 | FPK20 | FCM20 | FPK20 | - |
| SPMT120408 | FPK20 | FCM20 | FPK20 | - |
| Diameter Range(mm) | P | M | K | N | |||||||
|
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
| 21-25 | 0.10 | 0.08 | 0.08 | 0.06 | 0.06 | 0.12 | 0.10 | 0.10 | - | - | - |
| 32-40 | 0.15 | 0.12 | 0.12 | 0.10 | 0.08 | 0.20 | 0.15 | 0.15 | - | - | - |
| 50 | 0.20 | 0.15 | 0.15 | 0.12 | 0.10 | 0.25 | 0.20 | 0.20 | - | - | - |
| Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc | |||||||||||
