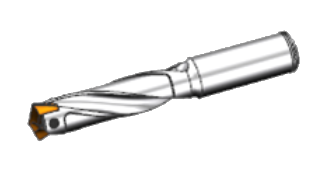

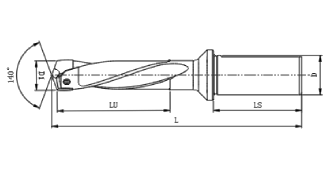

D1 | 產品型號 | 尺寸MM | |||
LU | L | LS | D | ||
12.00-12.49 | SPTC120R3A16 | 42 | 97 | 49 | 16 |
12.50-12.99 | SPTC125R3A16 | 42 | 97 | 49 | 16 |
13.00-13.49 | SPTC130R3A16 | 46 | 101 | 49 | 16 |
13.50-13.99 | SPTC135R3A16 | 46 | 101 | 49 | 16 |
14.00-14.49 | SPTC140R3A16 | 50 | 105 | 49 | 16 |
14.50-14.99 | SPTC145R3A16 | 50 | 105 | 49 | 16 |
15.00-15.49 | SPTC150R3A16 | 54 | 109 | 49 | 16 |
15.50-15.99 | SPTC155R3A16 | 54 | 109 | 49 | 16 |
16.00-16.49 | SPTC160R3A20 | 66 | 130 | 50 | 20 |
16.50-16.99 | SPTC165R3A20 | 66 | 130 | 50 | 20 |
17.00-17.49 | SPTC170R3A20 | 66 | 130 | 50 | 20 |
17.50-17.99 | SPTC175R3A20 | 66 | 130 | 50 | 20 |
18.00-18.49 | SPTC180R3A20 | 76 | 151 | 56 | 20 |
18.50-18.99 | SPTC185R3A20 | 76 | 151 | 56 | 20 |
19.00-19.49 | SPTC190R3A20 | 80 | 154 | 56 | 20 |
19.50-19.99 | SPTC195R3A20 | 80 | 154 | 56 | 20 |
|
|
||||

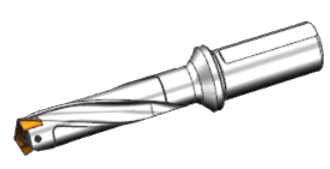

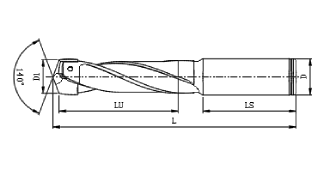

D1 | 產品型號 | 尺寸MM | |||
LU | L | LS | D | ||
20.00-20.99 | SPTC200R3B25 | 81 | 154 | 56 | 25 |
21.00-21.99 | SPTC210R3B25 | 81 | 157 | 56 | 25 |
22.00-22.99 | SPTC220R3B25 | 88 | 160 | 56 | 25 |
23.00-23.99 | SPTC230R3B25 | 88 | 163 | 56 | 25 |
24.00-24.99 | SPTC240R3B32 | 107 | 187 | 60 | 32 |
25.00-25.99 | SPTC250R3B32 | 107 | 187 | 60 | 32 |
26.00-26.99 | SPTC260R3B32 | 114 | 187 | 60 | 32 |
27.00-27.99 | SPTC270R3B32 | 114 | 192 | 60 | 32 |
28.00-28.99 | SPTC280R3B32 | 121 | 195 | 60 | 32 |
29.00-29.99 | SPTC290R3B32 | 121 | 198 | 60 | 32 |
30.00-31.99 | SPTC300R3B40 | 122 | 211 | 70 | 40 |
32.00-33.99 | SPTC320R3B40 | 124 | 217 | 70 | 40 |
34.00-35.99 | SPTC340R3B40 | 124 | 223 | 70 | 40 |
36.00-37.99 | SPTC360R3B40 | 154 | 237 | 70 | 40 |
38.00-39.99 | SPTC380R3B40 | 154 | 243 | 70 | 40 |
40.00-41.99 | SPTC400R3B40 | 162 | 249 | 70 | 40 |
42.00-43.99 | SPTC420R3B40 | 162 | 269 | 70 | 40 |
44.00-45.99 | SPTC440R3B40 | 190 | 275 | 70 | 40 |
46.00-47.99 | SPTC460R3B40 | 190 | 281 | 70 | 40 |
46.00-47.99 | SPTC480R3B40 | 190 | 287 | 70 | 40 |
50.00-52.00 | SPTC500R3B40 | 190 | 293 | 70 | 40 |
附件 | |||||||
螺釘 | 扳手 | ||||||
|
|
||||||
序號 | 尺寸 | 3倍徑刀桿型號 | 5倍徑刀桿型號 | 8倍徑刀桿型號 | 螺釘 | 扳手 | |
1 | 12.0 | SPTC120R3A16 | SPTC120R5A16 | SPTC120R8A16 | 120M2.5 | LS1.5 | |
2 | 12.5 | SPTC125R3A16 | SPTC125R5A16 | SPTC125R8A16 | 120M2.5 | LS1.5 | |
3 | 13.0 | SPTC130R3A16 | SPTC130R5A16 | SPTC130R8A16 | 130M2.5 | LS1.5 | |
4 | 13.5 | SPTC135R3A16 | SPTC135R5A16 | SPTC135R8A16 | 130M2.5 | LS1.5 | |
5 | 14.0 | SPTC140R3A16 | SPTC140R5A16 | SPTC140R8A16 | 140M2.5 | LS1.5 | |
6 | 14.5 | SPTC145R3A16 | SPTC145R5A16 | SPTC145R8A16 | 140M2.5 | LS1.5 | |
7 | 15.0 | SPTC150R3A16 | SPTC150R5A16 | SPTC150R8A16 | 150M2.5 | LS1.5 | |
8 | 15.5 | SPTC155R3A16 | SPTC155R5A16 | SPTC155R8A16 | 150M2.5 | LS1.5 | |
9 | 16.0 | SPTC160R3A20 | SPTC160R5A20 | SPTC160R8A20 | 160M3.0 | LS2.0 | |
10 | 16.5 | SPTC165R3A20 | SPTC165R5A20 | SPTC165R8A20 | 160M3.0 | LS2.0 | |
11 | 17.0 | SPTC170R3A20 | SPTC170R5A20 | SPTC170R8A20 | 170M3.0 | LS2.0 | |
12 | 17.5 | SPTC175R3A20 | SPTC175R5A20 | SPTC175R8A20 | 170M3.0 | LS2.0 | |
13 | 18.0 | SPTC180R3A20 | SPTC180R5A20 | SPTC180R8A20 | 180M3.0 | LS2.0 | |
14 | 18.5 | SPTC185R3A20 | SPTC185R5A20 | SPTC185R8A20 | 180M3.0 | LS2.0 | |
15 | 19.0 | SPTC190R3A20 | SPTC190R5A20 | SPTC190R8A20 | 190M3.0 | LS2.0 | |
16 | 19.5 | SPTC195R3A20 | SPTC195R5A20 | SPTC195R8A20 | 190M3.0 | LS2.0 | |
17 | 20.0 | SPTC200R3B25 | SPTC200R5B25 | SPTC200R8B25 | 210M4.0 | LS2.5 | |
18 | 21.0 | SPTC210R3B25 | SPTC210R5B25 | SPTC210R8B25 | 210M4.0 | LS2.5 | |
19 | 22.0 | SPTC220R3B25 | SPTC220R5B25 | SPTC220R8B25 | 230M4.0 | LS2.5 | |
20 | 23.0 | SPTC230R3B25 | SPTC230R5B25 | SPTC230R8B25 | 230M4.0 | LS2.5 | |
21 | 24.0 | SPTC240R3B25 | SPTC240R5B25 | SPTC240R8B25 | 250M4.0 | LS2.5 | |
22 | 25.0 | SPTC250R3B32 | SPTC250R5B32 | SPTC250R8B32 | 250M4.0 | LS2.5 | |
23 | 26.0 | SPTC260R3B32 | SPTC260R5B32 | SPTC260R8B32 | 270M5.0 | LS3.0 | |
24 | 27.0 | SPTC270R3B32 | SPTC270R5B32 | SPTC270R8B32 | 270M5.0 | LS3.0 | |
25 | 28.0 | SPTC280R3B32 | SPTC280R5B32 | SPTC280R8B32 | 290M5.0 | LS3.0 | |
26 | 29.0 | SPTC290R3B32 | SPTC290R5B32 | SPTC290R8B32 | 290M5.0 | LS3.0 | |
27 | 30.0 | SPTC300R3B40 | SPTC300R5B40 | SPTC300R8B40 | 300M5.0 | LS3.0 | |
28 | 32.0 | SPTC320R3B40 | SPTC320R5B40 | SPTC320R8B40 | 320M5.0 | LS3.0 | |
29 | 34.0 | SPTC340R3B40 | SPTC340R5B40 | SPTC340R8B40 | 340M5.0 | LS3.0 | |
30 | 36.0 | SPTC360R3B40 | SPTC360R5B40 | SPTC360R8B40 | 360M6.0 | LS4.0 | |
31 | 38.0 | SPTC380R3B40 | SPTC380R5B40 | SPTC380R8B40 | 380M6.0 | LS4.0 | |
32 | 40.0 | SPTC400R3B40 | SPTC400R5B40 | SPTC400R8B40 | 400M6.0 | LS4.0 | |
33 | 42.0 | SPTC420R3B40 | SPTC420R5B40 | SPTC420R8B40 | 420M6.0 | LS4.0 | |
34 | 44.0 | SPTC440R3B40 | SPTC440R5B40 | SPTC440R8B40 | 440M6.0 | LS4.0 | |
35 | 46.0 | SPTC460R3B40 | SPTC460R5B40 | SPTC460R8B40 | 460M6.0 | LS4.0 | |
36 | 48.0 | SPTC480R3B40 | SPTC480R5B40 | SPTC480R8B40 | 480M6.0 | LS4.0 | |
37 | 50.0 | SPTC500R3B40 | SPTC500R5B40 | SPTC500R8B40 | 500M6.0 | LS4.0 |
展開 關閉
切削參數-SPTC | |||||||
SMG | Vc=m/min | f=mm/rev | |||||
min | Starting Value | max | 12.0 | 16.0 | 20.0 | 25.0 | |
P1 | 100 | 110 | 150 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
P2 | 80 | 95 | 120 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
P3 | 65 | 70 | 100 | 0.10-0.30 | 0.15-0.35 | 0.15-0.40 | 0.15-0.40 |
M1 | 30 | 60 | 90 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
M2 | 30 | 50 | 90 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
M3 | 20 | 40 | 60 | 0.08-0.15 | 0.10-0.15 | 0.10-0.20 | 0.10-0.20 |
K1 | 100 | 175 | 200 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
K2 | 100 | 160 | 180 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
K3 | 70 | 85 | 100 | 0.15-0.30 | 0.15-0.35 | 0.20-0.40 | 0.20-0.40 |
切削參數-SPTC | ||||||
SMG | Vc=m/min | f=mm/rev | ||||
min | Starting Value | max | 32.0 | 40.0 | 50.0 | |
P1 | 100 | 110 | 150 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
P2 | 80 | 95 | 120 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
P3 | 65 | 70 | 100 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
M1 | 30 | 60 | 90 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
M2 | 30 | 50 | 90 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
M3 | 20 | 40 | 60 | 0.10-0.20 | 0.10-0.20 | 0.10-0.20 |
K1 | 100 | 175 | 200 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
K2 | 100 | 160 | 180 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
K3 | 70 | 85 | 100 | 0.20-0.40 | 0.20-0.40 | 0.20-0.40 |
