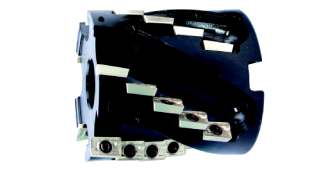

玉米銑刀-AP/AD15 | Corn milling cutter-AP/AD15 | ||
FIG1 | |||
FIG2 |
Type | Dcmm | d1mm | L1mm | L2mm | Lcmm | Z |
Insert No. |
Insert Type | Screw | Key | Drawing No. |
H90.AP15.W32.032.Z02.42 | 32 | 32 | 64 | 125 | 42 | 2 | 6 | AP..15T3.. | FCS922 | TORX15 | FIG1 |
H90.AP15.W40.040.Z03.56 | 40 | 40 | 79 | 150 | 56 | 3 | 12 | ||||
H90.AP15.B22.050.Z03.42 | 50 | 22 | 55 | / | 42 | 3 | 9 | FIG2 | |||
H90.AP15.B27.063.Z04.56 | 63 | 27 | 63 | / | 56 | 4 | 16 | ||||
H90.AP15.B32.080.Z05.70 | 80 | 32 | 85 | / | 70 | 5 | 25 | ||||
H90.AD15.W32.032.Z02.42 | 32 | 32 | 64 | 125 | 42 | 2 | 6 | AD..1505.. | FCS378 | TORX15 | FIG1 |
H90.AD15.W40.040.Z03.56 | 40 | 40 | 79 | 150 | 56 | 3 | 12 | ||||
H90.AD15.B22.050.Z03.42 | 50 | 22 | 55 | / | 42 | 3 | 9 | FIG2 | |||
H90.AD15.B27.063.Z03.56 | 63 | 27 | 63 | / | 56 | 3 | 12 | ||||
H90.AD15.B27.063.Z04.56 | 63 | 27 | 63 | / | 56 | 4 | 16 | ||||
H90.AD15.B32.080.Z05.70 | 80 | 32 | 85 | / | 70 | 5 | 25 |
Insert Type | L1mm | L2mm | a° |
S mm |
R mm |
|||||||||||||
AP..15T3.. | 9.52 | 15.88 | 11 | 3.97 | 0.8 | |||||||||||||
AD..1505.. | 9.6 | 15.95 | 15 | 5.64 | 0.8 |
Material Type | P | M | K | N | ||||||||||||||||||||||||||||||||||||||||
Applicable Insert Type | Alloy steel | Stainless steel | Cast iron | Non-ferrous metals | ||||||||||||||||||||||||||||||||||||||||
APMT15T3PDR-F56 | FPK20 | FCM20 | FPK20 | - | ||||||||||||||||||||||||||||||||||||||||
APHT15T3PDR-K88 | - | - | - | FCN20 | ||||||||||||||||||||||||||||||||||||||||
ADCT1505PDSR | FPK20 | FCM20 | FPK20 | - |
Diameter Range(mm) | P | M | K | N | |||||||
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
32-80 | 0.20 | 0.15 | 0.15 | 0.12 | 0.10 | 0.25 | 0.20 | 0.20 | 0.15 | 0.12 | 0.12 |
Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut≥1/2Dc;depth of cut≤1/2Lc |
