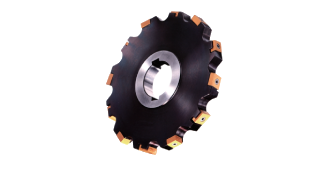

三面刃銑刀 | 3-face milling cutter | |||

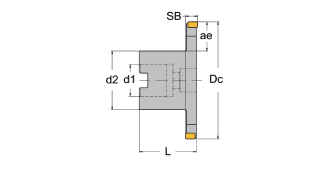

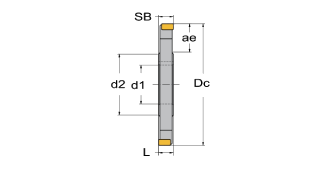

FIG1 | FIG2 | |||
Type |
Dc mm |
d1 mm |
d2 mm |
L mm |
SB mm |
Z |
ae max |
Insert Type | Screw | Key |
Darwing No. |
F10.CN08.B27.080.Z04 | 80 | 27 | 42 | 10 | 10 | 2*4 | 18 | CN..0805.. | FCS1015 | TORX8 | FIG1 |
F10.CN08.B32.100.Z05 | 100 | 32 | 50 | 10 | 10 | 2*5 | 24 | ||||
F10.CN08.B40.125.Z06 | 125 | 40 | 65 | 10 | 10 | 2*6 | 29 | ||||
F16.CN12.B40.125.Z05 | 125 | 40 | 65 | 16 | 16 | 2*5 | 29 | CN..1206.. | FCS379 | TORX15 | |
F16.CN12.B40.160.Z06 | 160 | 40 | 65 | 16 | 16 | 26 | 46 | ||||
F16.CN12.B50.200.Z07 | 200 | 50 | 75 | 16 | 16 | 2*7 | 61 | ||||
F10.CN08.BN22.080.Z04 | 80 | 22 | 45 | 40 | 10 | 2*4 | 13 | CN..0805.. | FCS1015 | TORX8 | FIG2 |
F10.CN08.BN27.100.Z05 | 100 | 27 | 48 | 50 | 10 | 2*5 | 2 | ||||
F10.CN08.BN32.125.Z06 | 125 | 32 | 60 | 50 | 10 | 2*6 | 30 | ||||
F12.CN08.BN27.100.Z05 | 100 | 27 | 48 | 50 | 12 | 2*5 | 24 | CN..0805.. | FCS379 | TORX8 | |
F12.CN08.BN32.125.Z06 | 125 | 32 | 60 | 50 | 12 | 2*6 | 30 | ||||
F12.CN08.BN40.160.Z07 | 160 | 40 | 75 | 50 | 12 | 2*7 | 40 | ||||
F16.CN12.BN32.125.Z05 | 125 | 32 | 60 | 50 | 16 | 2*5 | 30 | CN..1206.. | FCS1007 | TORX15 | |
F16.CN12.BN40.160.Z06 | 160 | 40 | 75 | 50 | 16 | 2*6 | 40 | ||||
F16.CN12.BN40.200.Z07 | 200 | 40 | 90 | 50 | 16 | 2*7 | 50 | ||||
F20.CN12.BN40.160.Z06 | 160 | 40 | 75 | 50 | 20 | 2*6 | 40 | CN..1206.. | FCS1007 | TORX15 | |
F20.CN12.BN40.200.Z07 | 200 | 40 | 90 | 50 | 20 | 2*7 | 50 | ||||
F20.CN12.BN60.250.Z08 | 250 | 60 | 135 | 50 | 20 | 2*8 | 55 | ||||
F25.CN16.BN40.200.Z07 | 200 | 40 | 90 | 50 | 25 | 2*7 | 50 | CN..1608.. | FCS1009 | TORX20 | |
F25.CN16.BN60.250.708 | 250 | 60 | 135 | 50 | 25 | 2*8 | 55 | ||||
F25.CN16.BN60.315.Z10 | 315 | 60 | 135 | 50 | 25 | 2*10 | 55 |
Insert Type |
L1 mm |
L2 mm |
S mm |
R mm |
|
CN..0805.. | 8 | 9 | 5 | 0.8 | |
CN..1206.. | 12 | 13 | 6.5 | 0.8 | |
CN..1608.. | 16 | 15 | 8 | 1.2 |
Material Type | P | M | K | N |
Applicable lnsert Type |
Alloy steel |
Stainless steel |
Castiron |
Non-ferrous metals |
CNMU080508-D57T | FPK20 | FCM20 | FPK20 | - |
CNMU120608-D57T | FPK20 | FCM20 | FPK20 | - |
CNMU160812-D57T | FPK20 | FCM20 | FPK20 | - |
Diameter Range(mm) | P | M | K | N | |||||||
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
80-125(SB10) | 0.12 | 0.10 | 0.10 | 0.06 | 0.06 | 0.14 | 0.12 | 0.12 | - | - | - |
100-160(SB12) | 0.15 | 0.13 | 0.13 | 0.08 | 0.08 | 0.18 | 0.15 | 0.15 | - | - | - |
125-200(SB16) | 0.20 | 0.17 | 0.17 | 0.10 | 0.10 | 0.23 | 0.20 | 0.20 | - | - | - |
160-250(SB20) | 0.17 | 0.14 | 0.14 | 0.08 | 0.08 | 0.19 | 0.17 | 0.17 | - | - | - |
200-315(SB25) | 0.23 | 0.20 | 0.20 | 0.13 | 0.13 | 0.27 | 0.23 | 0.23 | - | - | - |
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc |
