硬質(zhì)合金標(biāo)準(zhǔn)銑削刀具背景圖

密齒銑刀-89.5°

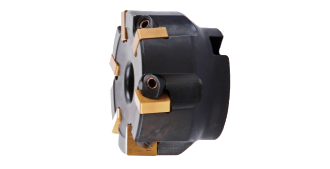

密齒銑刀-89.5° Multi-blade compatible milling cutter
密齒銑刀-89.5°.png 密齒銑刀-89.5°-2.png


Type Dc
mm
d1
mm
L1
mm
Lc
mm
Z Insert Type Double HeadScrew Key
C88.SN12.B22.050.Z05 50 22 40 3 5 SN..1204.. FCS239 FCK281
C88.SN12.B22.063.Z06 63 22 40 3 6
C88.SN12.B27.080.Z08 80 27 50 3 8
C88.SN12.B32.100.Z10 100 32 50 3 10
C88.SN12.B40.125.Z12 125 40 63 3 12
C88.SN12.B40.160.Z15 160 40 63 3 15
C88.SN12.B60.200.Z20 200 60 63 3 20
C88.SN12.B60.250.Z24 250 60 63 3 24
C88.SN12.B60.315.Z30 315 60 80 3 30
C88.SN12.B60.400.Z36 400 60 80 3 36


密齒銑刀-89.5°-3.png Insert Type L1
mm
S
mm
R
mm
SN..1204.. 12.7 4.76 0.8


Material Type P M K N
Applicable lnsert Type Alloy
steel
Stainless
steel
Castiron Non-ferrous
metals
SNGN1204ENSR-M FPK20 - FPK20 -


Diameter Range(mm) P M K N
Unalloyed
steel
Low alloyed
steel
Tool
steel
Martensitic
stainless steel
Austenitic
stainless steel
Grey
cast iron
Ductile
cast iron
Malleable
iron
Aluminium
alloy
Copper
alloy
Non-metallic
materials
50-400 0.20 0.15 0.15 0.12 - 0.25 0.20 0.20 - - -
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
