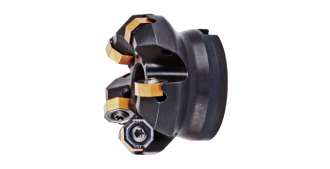

多刀片兼容銑刀 | Multi-blade compatible milling cutter |
Type |
Dc mm |
d1 mm |
L1 mm |
Lcmm | Z | Insert Type | Screw | Key |
FCOF45 8/16-D040-04-22R | 40 | 22 | 40 | 3.5 | 4 | ON..0505.. | FCS9010 | TORX20 |
FCOF45 8/16-D050-05-22R | 50 | 22 | 40 | 3.5 | 5 | |||
FCOF45 8/16-D063-06-22R | 63 | 22 | 40 | 3.5 | 6 | |||
FCOF45 8/16-D080-07-27R | 80 | 27 | 50 | 3.5 | 7 | |||
FCOF45 8/16-D100-08-32R | 100 | 32 | 50 | 3.5 | 8 | |||
FCOF45 8/16-D125-10-40R | 125 | 40 | 63 | 3.5 | 10 | |||
FCOF45 8/16-D160-12-40R | 160 | 40B | 63 | 3.5 | 12 | |||
FCOF45 8/16-D200-14-60R | 200 | 60B | 63 | 3.5 | 14 |
Insert Type |
L1 mm |
D mm |
S mm |
|
ONMU050505-TN | 4.5 | 13 | 5.2 | |
ONHU0505-W(Wiper) | 4.7 | 13 | 4.9 |
Material Type | P | M | K | N |
Applicable lnsert Type |
Alloy steel |
Stainless steel |
Castiron |
Non-ferrous metals |
ONMU050505-TN | FCP20 | - | FCK20 | - |
ONHU0505-W | FCP20 | FCM20 | FCK20 | - |
Diameter Range(mm) | P | M | K | N | |||||||
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
40-160 | 0.30 | 0.25 | 0.20 | 0.15 | 0.12 | 0.35 | 0.30 | 0.25 | - | - | - |
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc |
