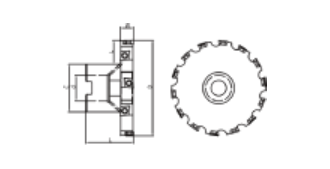

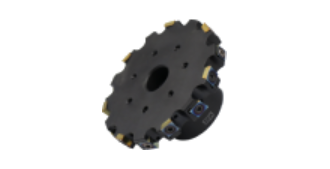

TVTG-CD系列三面刃銑刀盤 | ||
●在庫品 | ○接訂單生產 | |||||||||||
型號 |
庫存 | 尺寸 | 配件 | 適用刀片 | ||||||||
R | D | d(H7) | T |
W |
C |
L | Z | 緊固螺釘 | 扳手 | |||
TVTG |
08022CD09W13-12 | ○ | 80 | 22 |
20 |
13 | 40 | 40 | 6+6 | TS-4010-6057-T15 | TF-T15 |
CDGW09T3**R CDGW09T3**L |
08022CD09W14-12 | ● | 14 | ||||||||||
08022CD09W15-12 | ○ | 15 | ||||||||||
10027CD09W13-14 | ○ | 100 | 27 | 25 | 13 | 50 | 45 | 7+7 | ||||
10027CD09W14-14 | ● | 14 | ||||||||||
10027CD09W15-14 | ○ | 15 | ||||||||||
12532CD09W13-16 | ○ | 125 |
32 |
30 |
13 | 60 | 50 | 8+8 | ||||
12532CD0914-16 | ● | 14 | ||||||||||
12532CD09W5-16 | ○ | 15 |
CDGW 刀片 | ||
TVTG-CD系列CD銑刀片 | ||
●在庫品 | ○接訂單生產 | |||||||||||||
型號 | 尺寸 | 材質 | ||||||||||||
涂層硬質合金 | 硬質合金 | PCD | ||||||||||||
L | B | R | A | T | d | TXA1020 | TXP1020 | TXM3020 | TXC4030 | TXD1020 | TX10 | TD101 | ||
CDGW | 09T302R | 8.9 | 9.53 | 0.2 | 9.53 | 3.97 | 4.4 | ● | ○ | ○ | ○ | ● | ● | ○ |
09T304R | 0.4 | ● | ○ | ○ | ○ | ● | ● | ● | ||||||
09T308R | 0.8 | ● | ○ | ○ | ○ | ● | ● | ○ | ||||||
CDGW |
09T302L | 8.9 | 9.53 | 0.2 | 9.53 | 3.97 |
4.4 |
● | ○ | ○ | ○ | ● | ● | ○ |
09T302L | 0.4 | ● | ○ | ○ | ○ | ● | ● | ● | ||||||
09T308L | 0.8 | ● | ○ | ○ | ○ | ● | ● | ○ |
