模塊式玉米銑刀

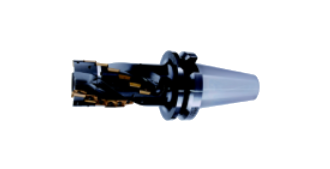

模塊式玉米銑刀 Modular corn milling cutter
模塊式玉米銑刀.png 模塊式玉米銑刀-2.png


Type Dcmm d1mm L1mm Lcmm Z Insert
No.
Insert Type Screw Key Drawing No.
H90.AP15.BT5.050.Z03.84-FM 50 BT50 148 84 3 18 AP..15T3.. FCS922 TORX15 FIG1
H90.AP15.SK5.050.Z03.84-FM 50 SK50 130 84 3 18
H90.AP15.BT5.063.Z03.98-FM 63 BT50 168 98 3 21
H90.AP15.SK5.063.Z03.98-FM 63 SK50 150 98 3 21
H90.AP15.BT5.080.Z04.112-FM 80 BT50 184 112 4 32
H90.AP15.SK5.080.Z04.112-FM 80 SK50 165 112 4 32
H90.AP15.C.050.Z03.28 50 / / 28 3 6 FIG2
H90.AP15.C.063.Z03.28 60 / / 28 3 6
H90.AP15.C.080.Z04.28 83 / / 28 4 8
H90.AP15.BT5K.050.Z03.56 50 BT50 120 56 3 12 FIG3
H90.AP15.SK5K.050.Z03.56 50 SK50 102 50 3 12
H90.AP15.BT5K.063.Z03.70 63 BT50 140 70 3 15
H90.AP15.SK5K.063.Z03.70 63 SK50 122 70 3 15
H90.AP15.BT5K.080.Z04.84 80 BT50 156 84 4 24
H90.AP15.SK5K.080.Z04.84 80 SK50 137 84 4 24
H90.AD15.BT5.050.Z03.84-FM 50 BT50 148 84 3 18 AD..1505.. FCS378 TORX15 FIG1
H90.AD15.SK5.050.Z03.84-FM 50 SK50 130 84 3 18
H90.AD15.BT5.063.Z03.98-FM 63 BT50 168 98 3 21
H90.AD15.SK5.063.Z03.98-FM 63 SK50 150 98 3 21
H90.AD15.BT5.080.Z04.112-FM 80 BT50 184 112 4 32
H90.AD15.SK5.080.Z04.112-FM 80 SK50 165 112 4 32
H90.AD15.C.050.Z03.28 50 / / 28 3 6 FIG2
H90.AD15.C.063.Z03.28 63 / / 28 3 6
H90.AD15.C.080.Z04.28 80 / / 28 4 8
H90.AD15.BT5K.050.Z03.56 50 BT50 120 56 3 12 FIG3
H90.AD15.SK5K.050.Z03.56 50 SK50 102 50 3 12
H90.AD15.BT5K.063.Z03.70 63 BT50 140 70 3 15
H90.AD15.SK5K.063.Z03.70 63 SK50 122 70 3 15
H90.AD15.BT5K.080.Z04.84 80 BT50 156 84 4 24
H90.AD15.SK5K.080.Z04.84 80 SK50 137 84 4 24


玉米銑刀apd-3.png Insert Type L1
mm
L2
mm
S
mm
R
mm
AP..15T3.. 9.52 15.88 11 3.97 0.8
AD..1505.. 9.6 15.95 15 5.64 0.8


Material Type P M K N
Applicable Insert Type Alloy steel Stainless steel Cast iron Non-ferrous metals
APMT15T3PDR-F56 FPK20 FCM20 FPK20 -
APHT15T3PDR-K88 - - - FCN20
ADCT1505PDSR FPK20 FCM20 FPK20 -


Diameter Range(mm) P M K N
Unalloyed
steel
Low alloyed
steel
Tool
steel
Martensitic
stainless steel
Austenitic
stainless steel
Grey
cast iron
Ductile
cast iron
Malleable
iron
Aluminium
alloy
Copper
alloy
Non-metallic
materials
32-80 0.20 0.15 0.15 0.12 0.10 0.25 0.20 0.20 0.15 0.12 0.12
Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut≥1/2Dc;depth of cut≤1/2Lc
