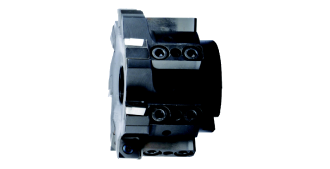

| 鋁合金面銑刀 | Aluminum alloy face milling cutter |
|
|
| Type |

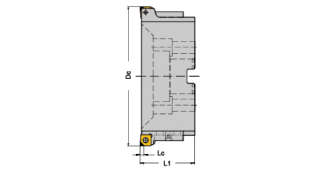

Dc mm |
d1 mm |
L1 mm |
Lc mm |
Z |
Weight KG |
Insert Type | Screw | Key |
| M90.SP12.B27.080.Z06-CM50 | 080 | 27 | 63 | 3 | 5+1 | 1.1 | SPGW1204 | FCS1030 | TORX20 |
| M90.SP12.B32.100.Z07-CM50 | 100 | 32 | 63 | 3 | 6+1 | 1.8 | |||
| M90.SP12.B40.125.Z08-CM50 | 125 | 40 | 63 | 3 | 7+1 | 1.2 | |||
| M90.SP12.B40.160.Z10-CM50 | 160 | 40 | 63 | 3 | 9+1 | 1.9 | |||
| M90.SP12.B60.200.Z12-CM50 | 200 | 50 | 63 | 3 | 11+1 | 4.1 |
|
|
| Holder | FCR594 |
| Fine-turning Screw | FCS1131 |
| Spring Washer | FCS1100 |
| Holder Lock Screw | FCS1146 |
| Holder Lock Key | TLL2.5/TLL5.0 |
|
Insert Type |
D mm |
a° |
S mm |
b mm |
| SPGW1204 | 12.7 | 11 | 4.76 | 1.5 |
| Material Type | P | M | K | N |
| Applicable lnsert Type |
Alloy steel |
Stainless steel |
Castiron |
Non-ferrous metals |
| SPGW1204 | - | - | - | FCD20 |
| Diameter Range(mm) | P | M | K | N | |||||||
|
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
| 80-315 | - | - | - | - | - | - | - | - | 0.15 | 0.15 | 0.15 |
| Starting value of feeds(per tooth mm):Suitable for common cutting conditions with a width of cut≥1/2Dc; depth of cut ≤1/2Lc | |||||||||||
