硬質(zhì)合金標準銑削刀具背景圖

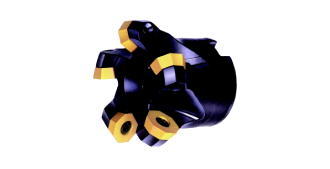

43°銑刀


43°銑刀 43°milling cutter
43°銑刀.png 43°銑刀-2.png

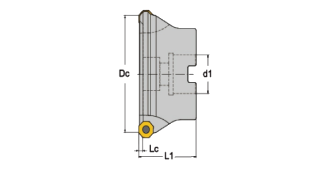

Type Dc
mm
d1
mm
L1
mm
Lcmm Z Insert Type Screw Key
M43.OD06.B16.050.Z03 40 16 40 4 3 OD..0605.. FS103 TORX20
M43.OD06.B16.050DC.Z03 50 16 40 4 3
M43.OD06.B22.052.Z03 42 22 45 4 3
M43.OD06.B22.063.Z04 53 22 40 4 4
M43.OD06.B22.063.Z05 53 22 40 4 5
M43.OD06.B22.063DC.Z05 63 22 40 4 5
M43.OD06.B27.066.Z05 56 27 50 4 5
M43.OD06.B27.080.Z05 80 27 50 4 5
M43.OD06.B27.080.Z06 80 27 50 4 6
M43.OD06.B27.080DC.Z06 80 27 50 4 6
M43.OD06.B32.100.Z05 100 32 50 4 5
M43.OD06.B32.100.Z07 100 32 50 4 7
M43.OD06.B32.100DC.Z07 100 32 50 4 7
M43.OD06.B40.125.Z06 125 40 63 4 6
M43.OD06.B40.125.Z08 125 40 63 4 8
M43.OD06.B40.125DC.Z08 125 40 63 4 8
M43.OD06.B40.160.Z07 160 40 63 4 7
M43.OD06.B40.160.Z09 160 40 63 4 9
M43.OD06.B40.160DC.Z09 160 40 63 4 9


43°銑刀-3.png Insert Type D
mm
S
mm
OD..0605.. 15.88 15 6


Material Type P M K N
Applicable lnsert Type Alloy
steel
Stainless
steel
Castiron Non-ferrous
metals
ODMT0605ZZN FPK20 FCM20 FPK20 -
ODHT0605ZZN - - - FCN20


Diameter Range(mm) P M K N
Unalloyed
steel
Low alloyed
steel
Tool
steel
Martensitic
stainless steel
Austenitic
stainless steel
Grey
cast iron
Ductile
cast iron
Malleable
iron
Aluminium
alloy
Copper
alloy
Non-metallic
materials
40-160 0.50 0.45 0.35 0.25 0.15 0.50 0.40 0.40 - - -
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc
