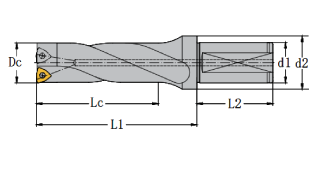

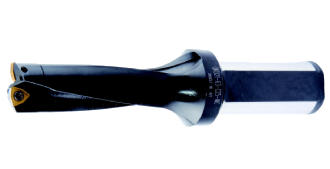

淺孔鉆-3xDc-Wc | Indexable Insert Drills-3XDc-WC |
Type |
Dcmm |
d1mm |
d2mm | Lcmm | L1mm | L2mm |
Edge |
Insert Type | Insert Lock Screw | key | |||
D3X.WC04.25.020.Z01 | 20 | 25 | 35 | 60 | 85 | 56 | 1 | WC..040208 | FCS923 | TORX08 | |||
D3X.WC04.25.021.Z01 | 21 | 25 | 35 | 63 | 88 | 56 | 1 | ||||||
D3X.WC04.25.022.Z01 | 22 | 25 | 35 | 66 | 91 | 56 | 1 | ||||||
D3X.WC04.25.023.Z01 | 23 | 25 | 35 | 69 | 94 | 56 | 1 | ||||||
D3X.WC04.25.024.Z01 | 24 | 25 | 35 | 72 | 97 | 56 | 1 | ||||||
D3X.WC04.25.025.Z01 | 25 | 25 | 35 | 75 | 100 | 56 | 1 | WC..050308 | FCS1005 | TORX08 | |||
D3X.WC04.25.026.Z01 | 26 | 32 | 42 | 78 | 110 | 60 | 1 | ||||||
D3X.WC04.25.027.Z01 | 27 | 32 | 42 | 81 | 113 | 60 | 1 | ||||||
D3X.WC04.25.028.Z01 | 28 | 32 | 42 | 84 | 116 | 60 | 1 | ||||||
D3X.WC04.25.029.Z01 | 29 | 32 | 43 | 87 | 119 | 60 | 1 | ||||||
D3X.WC05.32.030.Z01 | 30 | 32 | 42 | 90 | 122 | 60 | 1 | ||||||
D3X.WC06.32.031.Z01 | 31 | 32 | 42 | 93 | 125 | 60 | 1 | WC..06T308 | FCS360 | TORX15 | |||
D3X.WC06.32.032.Z01 | 32 | 32 | 42 | 96 | 128 | 60 | 1 | ||||||
D3X.WC06.32.033.Z01 | 33 | 32 | 42 | 99 | 131 | 60 | 1 | ||||||
D3X.WC06.32.034.Z01 | 34 | 32 | 42 | 102 | 134 | 60 | 1 | ||||||
D3X.WC06.32.035.Z01 |
35 |
32 | 42 | 105 | 137 | 60 | 1 | ||||||
D3X.WC06.32.036.Z01 | 36 | 32 | 42 | 108 | 140 | 60 | 1 | ||||||
D3X.WC06.40.037.Z01 | 37 | 40 | 50 | 111 | 151 | 70 | 1 | ||||||
D3X.WC06.40.038.Z01 | 38 | 40 | 50 |
114 |
154 | 70 | 1 | ||||||
D3X.WC06.40.039.Z01 |
39 |
40 | 50 | 117 | 157 | 70 | 1 | ||||||
D3X.WC06.40.040.Z01 |
40 |
40 | 50 | 120 | 160 | 70 | 1 |
Insert Type | D mm | a° | S mm | R mm | |
WC..040208 | 6.35 | 7 | 2.38 | 0.8 | |
WC..050308 | 7.94 | 7 | 3.18 | 0.8 | |
WC..06T308 | 9.525 | 7 | 3.97 | 0.8 |
Material Type | P | M | K | N |
Applicable Insert Type | Alloy steel | Stainless steel | Cast iron | Non-ferrous metals |
WCMT040208 | FCP20 | FCM20 | FCK20 | / |
WCKT040208 | / | / | / | FCN20 |
WCMT050308 | FCP20 | FCM20 | FCK20 | / |
WCKT050308 | / | / | / | FCN20 |
WCMT06T308 | FCP20 | FCM20 | FCK20 | / |
WCKT06T308 | / | / | / | FCN20 |
