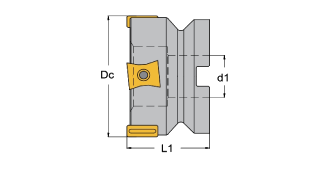

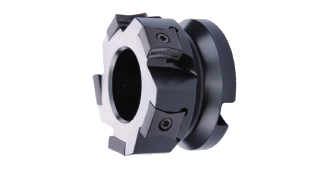

89.5°銑刀 | 89.5°milling cutter |
Type |
Dc mm |
d1 mm |
L1 mm |
Lc mm |
Z | Insert Type | Screw | Key |
M90.SP09.B16.040.Z05 | 40 | 16 | 40 | 9 | 5 | SP..09T3.. | FCS359 | TORX15 |
M90.SP09.B22.050.Z06 | 50 | 22 | 40 |
9 |
6 | |||
M90.SP09.B22.063.Z07 | 63 | 22 | 40 | 9 | 7 | |||
M90.SP09.B27.080.Z08 | 80 | 27 | 50 | 9 | 8 | |||
M90.SP09.B32.100.Z09 | 100 | 32 | 50 |
9 |
9 | |||
M90.SP09.B40.125.Z11 | 125 | 40 | 63 | 9 | 11 | |||
M90.SP09.B40.160.Z13 | 160 | 40 | 63 | 9 | 13 | |||
M90.SP12.B22.050.Z04 | 50 | 22 | 40 | 12 | 4 | SP..1204.. | FCS1030 | TORX20 |
M90.SP12.B22.063.Z05 | 63 | 22 | 40 | 12 | 5 | |||
M90.SP12.B27.080.Z06 | 80 | 27 | 50 | 12 | 6 | |||
M90.SP12.B32.100.Z07 | 100 | 32 | 50 | 12 | 7 | |||
M90.SP12.B40.125.Z08 | 125 | 40 | 63 | 12 | 8 | |||
M90.SP12.B40.160.Z10 | 160 | 40 | 63 | 12 | 10 |
Insert Type |
L1 mm |
L2 mm |
S mm |
R mm |
|
SP..09T3.. | 9.52 | 11 | 3.97 | 0.8 | |
SP..1204.. | 12.7 | 11 | 4.76 | 0.8 |
Material Type | P | M | K | N |
Applicable lnsert Type |
Alloy steel |
Stainless steel |
Castiron |
Non-ferrous metals |
SPMT09T308 | FPK20 | FCM20 | FPK20 | - |
SPMT120408 | FPK20 | FCM20 | FPK20 | - |
Diameter Range(mm) | P | M | K | N | |||||||
Unalloyed steel |
Low alloyed steel |
Tool steel |
Martensitic stainless steel |
Austenitic stainless steel |
Grey cast iron |
Ductile cast iron |
Malleable iron |
Aluminium alloy |
Copper alloy |
Non-metallic materials |
|
40-160(SP09) | 0.15 | 0.12 | 0.12 | 0.10 | 0.08 | 0.20 | 0.15 | 0.15 | - | - | - |
50-160(SP12) | 0.20 | 0.15 | 0.15 | 0.12 | 0.10 | 0.25 | 0.20 | 0.20 | - | - | - |
Starting value of feeds (per tooth mm): Suitable for common cutting conditions with a width of cut ≥ 1/2Dc; depth of cut≤ 1/2Lc |
